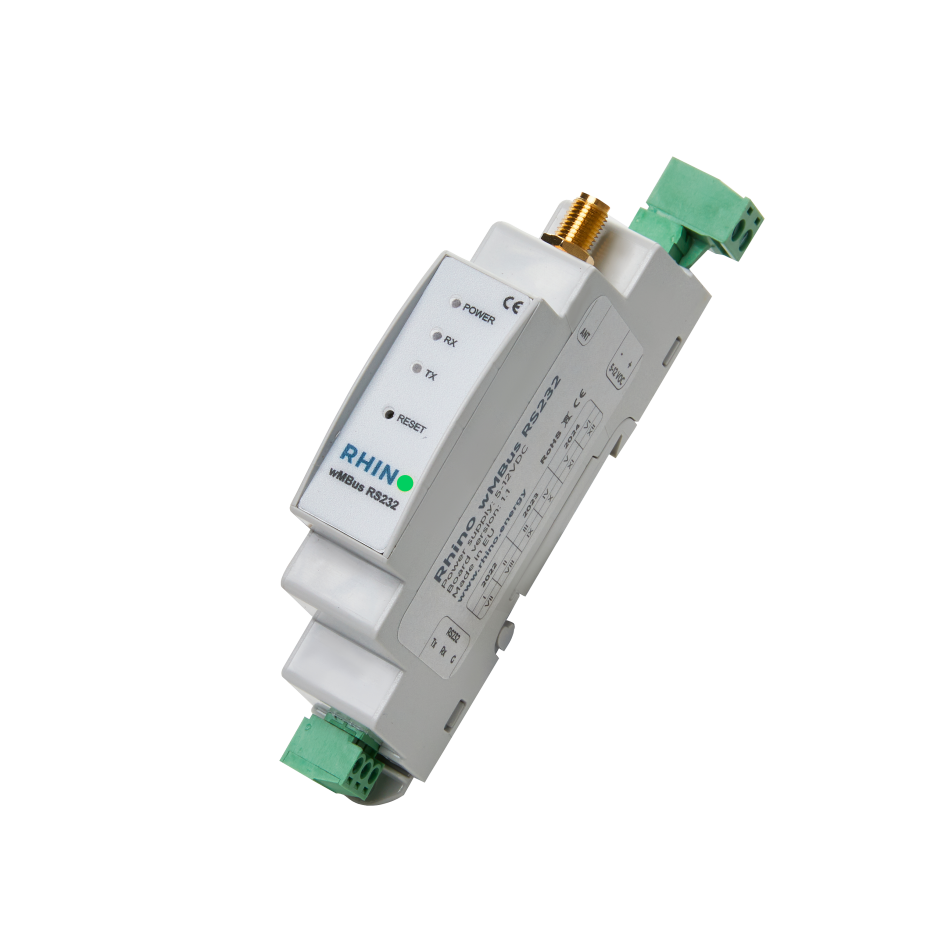

Rhino WMBus RS232
Rhino WMBus RS232
Rhino WMBus RS232 serves as a gateway between wireless MBus supporting radiometers and the Rhino AP. It is a gateway that receives RF data from any number of wmbus meters in the RF range and passes them through the RS232 serial port. The module can also be used for remote configuration of wireless MBus end devices. Rhino WMBus RS232 is powered by an external 5-12VDC power supply.
REQUEST A QUOTE
Description
| Rhino communication | Wired RS232 |
| Power supply | 5-12 VDC (0.1A) |
| Output | 1x RS232 |
| Supported communication protocols | T1 and C1 mode wireless M-Bus |
| Configuration | Over the Air (OTA) |
| Operating temperature range | -40 ℃ – 85 ℃ (depending upon installed environment) |
| IP class | IP40 (not suitable for outdoor use) |
| Dimensions | 18 mm x 90 mm x 53 mm (1 DIN module) |
| Weight | ~0.05kg |
| LED indications | Power (red permanent) – Power OK RX (yellow short flash) – Data received TX (green short flash) – Data sent |
| Reset button | Used during local firmware update |
| Additional equipment | 1 x ISM antenna with 3m cable and magnetic base |
| Required cable types | Signal thickness – 0.129-1.31 MM² – 26-16AWG Power supply thickness – 0.205-3.31 MM² – 24-12AWG |
